GROUND CORDS
10MM MALE SNAP SAUCER SHAPED GROUND CORD
- Low profile design so as to prevent the user from tripping on cord connection
- 10mm male snap
- 5.4mm (internal diameter) of “O” ring terminal
- The OD of cord is 3mm
- 30pcs of 0.16mm Tinned copper
- The length of cord is 15ft
- Mount quickly to the soft mat
- With or without resistor
| Specification | Product Code |
| With One Megohm Resistor | M000M0013 |
| Without One Megohm Resistor | M000M0014 |
10MM FEMALE SNAP SAUCER SHAPED GROUND CORD
- Low profile design so as to prevent the user from tripping on cord connection
- 10mm female snap
- 5.4mm (internal diameter) of “O” ring terminal
- The OD of cord is 3mm
- 30pcs of 0.16mm Tinned copper
- The length of cord is 15ft
- Mount quickly to the soft mat
- With or without resistor
| Specification | Product Code |
| With One Megohm Resistor | M000M0015 |
| Without One Megohm Resistor | M000M0016 |
10MM DUAL SNAP SAUCER SHAPED GROUND CORD
- Low profile design so as to prevent the user from tripping on cord connection
- 10mm male and female snap
- 5.4mm (internal diameter) of “O” ring terminal
- The OD of cord is 3mm
- 30pcs of 0.16mm Tinned copper
- The length of cord is 15ft
- Mount quickly to the soft mat
- With or without resistor
| Specification | Product Code |
| With One Megohm Resistor | M000M0048 |
| Without One Megohm Resistor | M000M0049 |
STRAIGHT CORD WITH 1 MEGOHM RESISTOR
- Help any hardware such as work station, machine, equipment and the like to bring away the static.
- 5.4mm(internal diameter) of “O” ring terminal
- The OD of cord is 3mm at both end
- 30pcs of 0.16mm Tinned copper
- 10ft and 15ft is available
- With 1megohm resistor
- You can check “HOW TO USE“? to learn how to use
| Specification | Product Code |
| 10ft | M000M0050 |
| 15ft | M000M0051 |
SNAP TO “O” RING GENERAL GROUND CORD
- Small size design so as to prevent the user from tripping on cord connection
- 10mm female snap
- 5.4mm(internal diameter) of “O” ring terminal
- The OD of cord is 2.25mm
- The length of cord is 10ft
- Mount quickly to the soft mat
- With or without 1megohm resistor
| Specification | Product Code |
| With One Megohm Resistor | M000M0036 |
| Without One Megohm Resistor | M000M0037 |

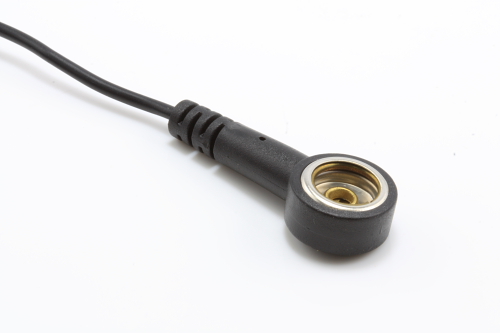

SNAP TO SNAP GENERAL GROUND CORD
- Small size design so as to prevent the user from tripping on cord connection
- 10mm female snap
- The other side is also 10mm female snap
- The OD of cord is 2.25mm
- The length of cord is 10ft
- Mount quickly to the soft mat
- With or without 1megohm resistor
| Specification | Product Code |
| With One Megohm Resistor | M000M0046 |
| Without One Megohm Resistor | M000M0047 |
